Heat Shrinkable Cable Accessory:

Heat Shrinkable Conductive End Caps
(Heat Shrink End Seals)



Download
Ikebana Heat Shrink Conductive End Caps Brochure

(Specifications and the product dimensions given in this brochure are subject to change without notice.
Please refer to the latest version of the drawings and specification-sheets on the Ikebana web site,
or contact our office in Thailand.)

Product Data Sheet

Characteristics

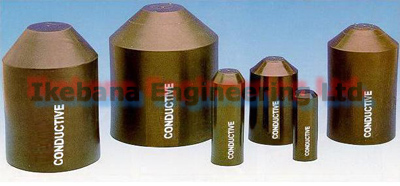

This data sheet covers the requirements for heat shrinkable conductive end caps whose dimension will shrink to a predetermined size upon the application of heat above 125° C. Color of the conductive end caps is black. The conductive end caps are precoated on the machine with a hot melt adhesive of translucent, yellowish color. Coating is in spiral form. The conductive end caps have a filling of condutive mastic at the head of the end cap.

Typical Applications
Conductive end caps are used for protecting the unused cable end where there are live cables in the close vicinity of this cable. The live cables nearby create an electric field and induce a potential in the unused cable. The conductive end cap neutralizes this potential induced in the unused cable. Conductive end caps also protect the cable end from the environmental effects like the normal end caps. The below application table gives the conductive end cap dimensions for each model.

Sr. No.
  Con End Cap
Diameter
Length
Wall Thickness
Conductive
Mastic Length
Supplied
Recovered
Supplied
 Recovered
1
IXL100SCON
 10.0
3.0
35
2.3
5
2
IXL100CON
 15.0
4.5
45
2.3
7
3
IXL105CON
 20.0
6.0
63
3.1
9
4
IXL110CON
 25.0
8.5
70
3.0
8
5
IXL120CON
 40.0
14.5
102
3.2
13
6
IXL130CON
 63.0
24.0
118
3.7
16
7
IXL135CON
 75.0
32.0
120
4.3
23
8
IXL140CON
 78.0
38.0
130
4.0
26
9
IXL145CON
 106.0
45.0
164
4.5
29
10
IXL150CON
 100.0
57.0
155
4.0
25
11
IXL160CON
 120.0
57.0
155
4.0
25
12
IXL170CON
 145.0
57.0
155
5.0
25

Engineering Drawings


Conductive End Caps (End Seals)

Materials
The base material of the conductive end caps is thermally stabilized, cross linked polyolefin. The raw material is compounded with a package of chemical additives offering protection against oxidation, ozone, UV radiation etc. The most important additive is conductive carbon black which adds electrical conductivity to the material. The head of the conductive end cap is filled with conductive mastic for positive contact with the cable end.

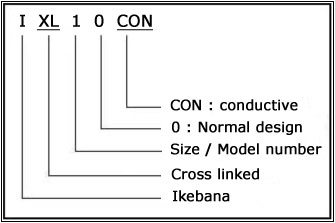

Part Numbering System



Download Specification Sheet

Printing on the Product
Each Ikebana conductive end cap is printed with a heat resistant printing ink of white color.
Printed information includes:
1. Ikebana logo
2. Product code
3. End cap dimensions

Packaging
Conductive end caps are packed individually, in a convenient way inside a polythene bag, in order to reduce consignment volume. Outer packing is a standardized Ikebana corrugated carton with strapping and a label with information of customer and contents. It also has QA approval seal.
